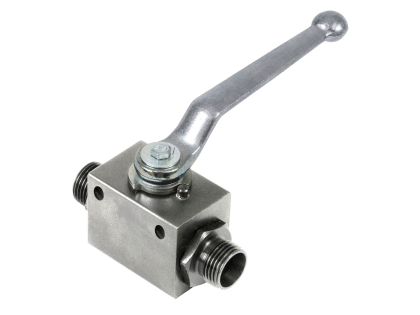

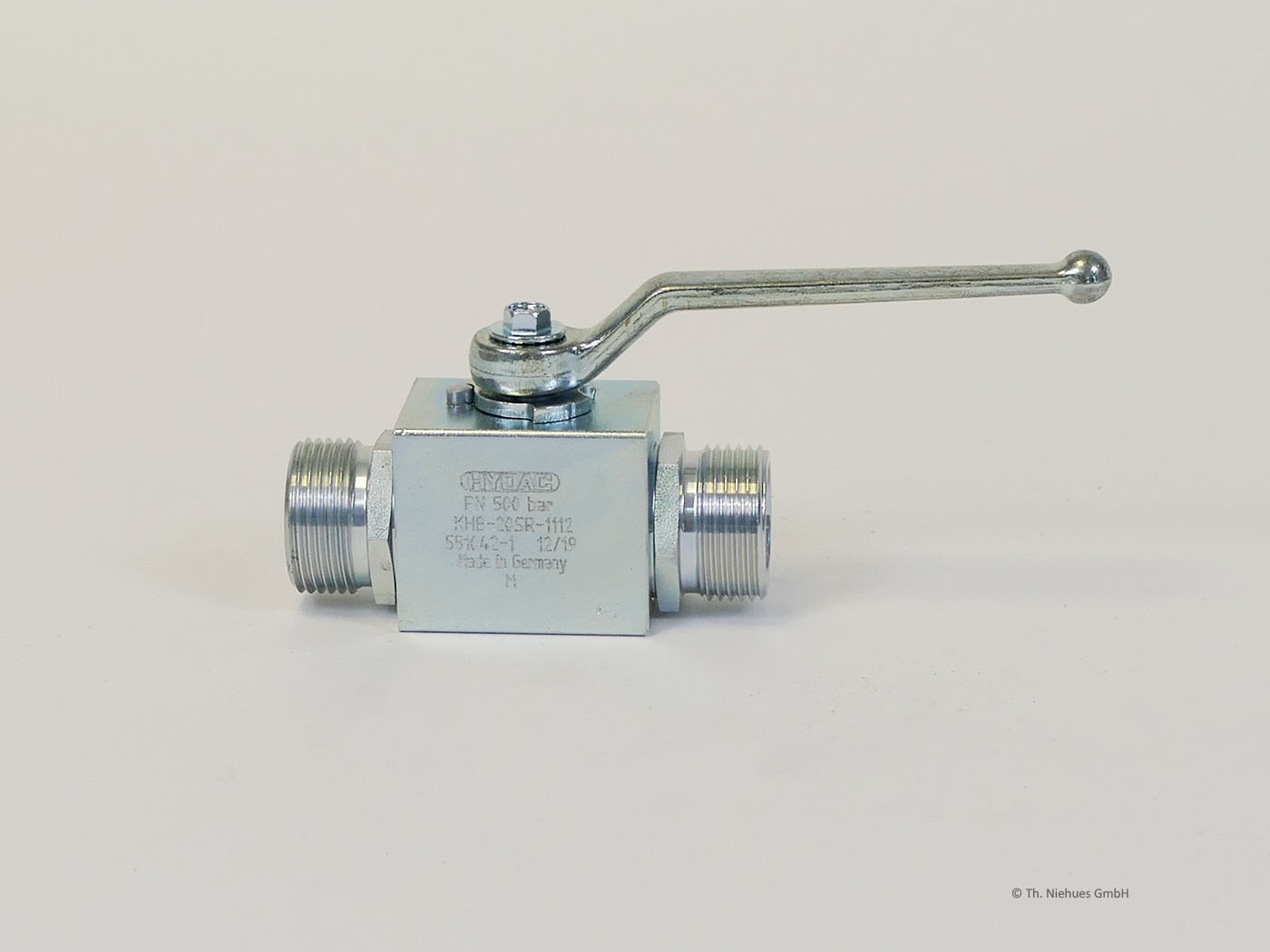

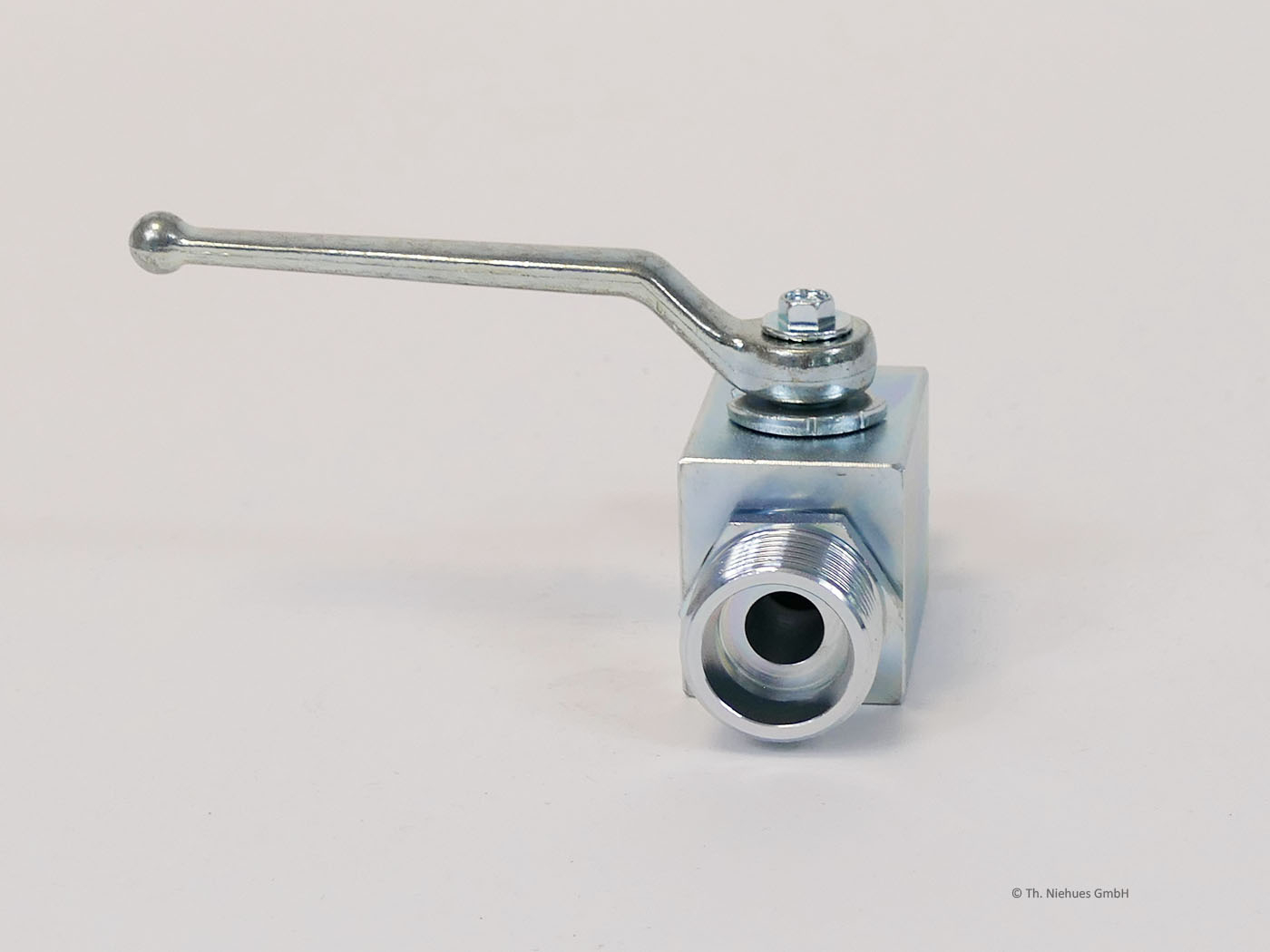

Ball valve KHB-15LR-1112-03X-A - Niehues

Manufacturer information

• Connection, mechanical:

  15L - M22X1.5

  Material:

  galvanized steel, Chrome(VI)-free

  Nominal diameter:

  DN12

  max. operating pressure:

  420 bar

  tap wrench:

  zinc die-cast clamped handle, straight SW12

  Temperature range:

  -10° up to +80°C

  Seal:

  EO2 sealing ring made of Viton

  Seal:

  NBR

  Seal:

  NBR (Nitrile)

  availability:

  no stock
