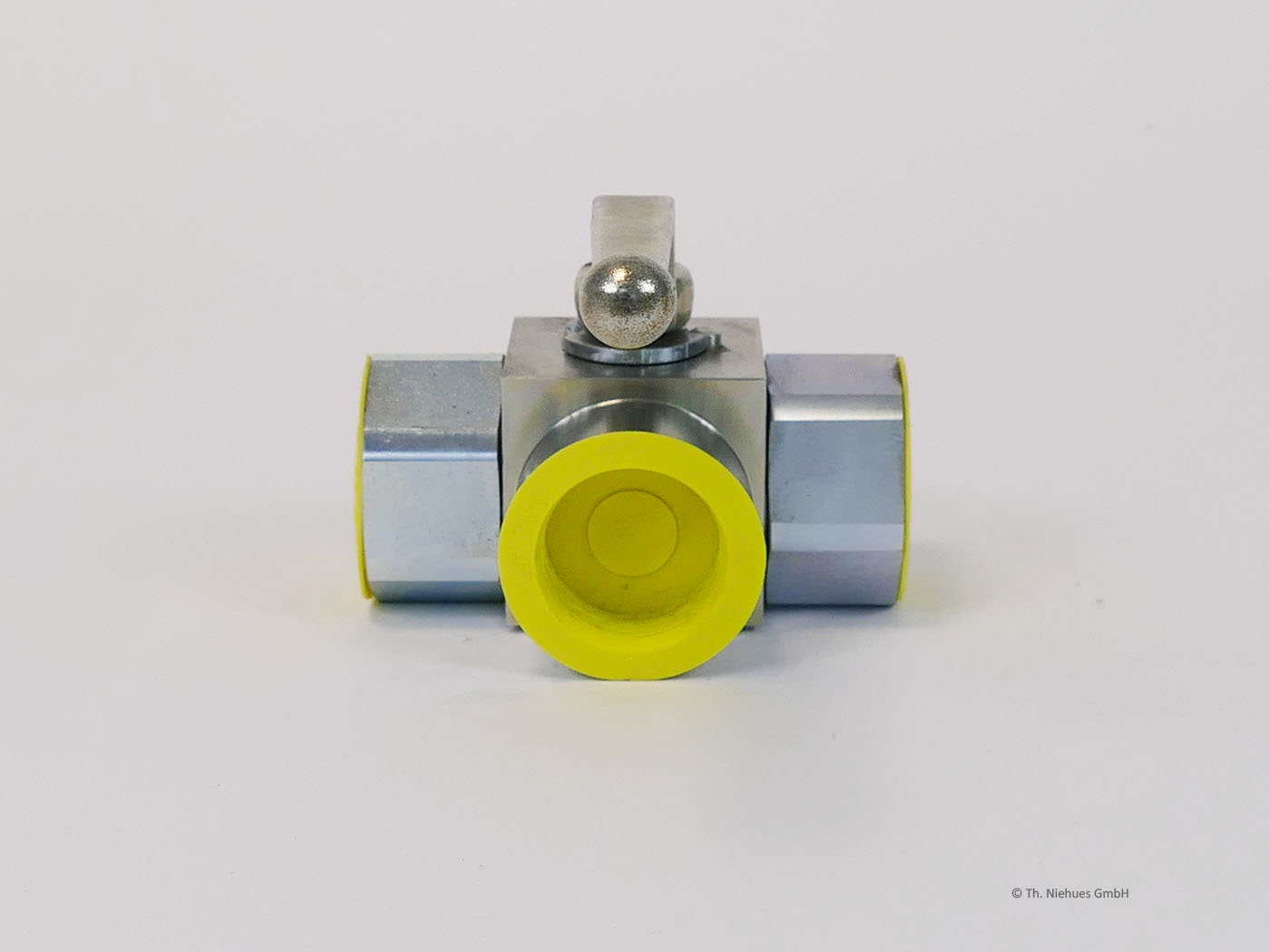

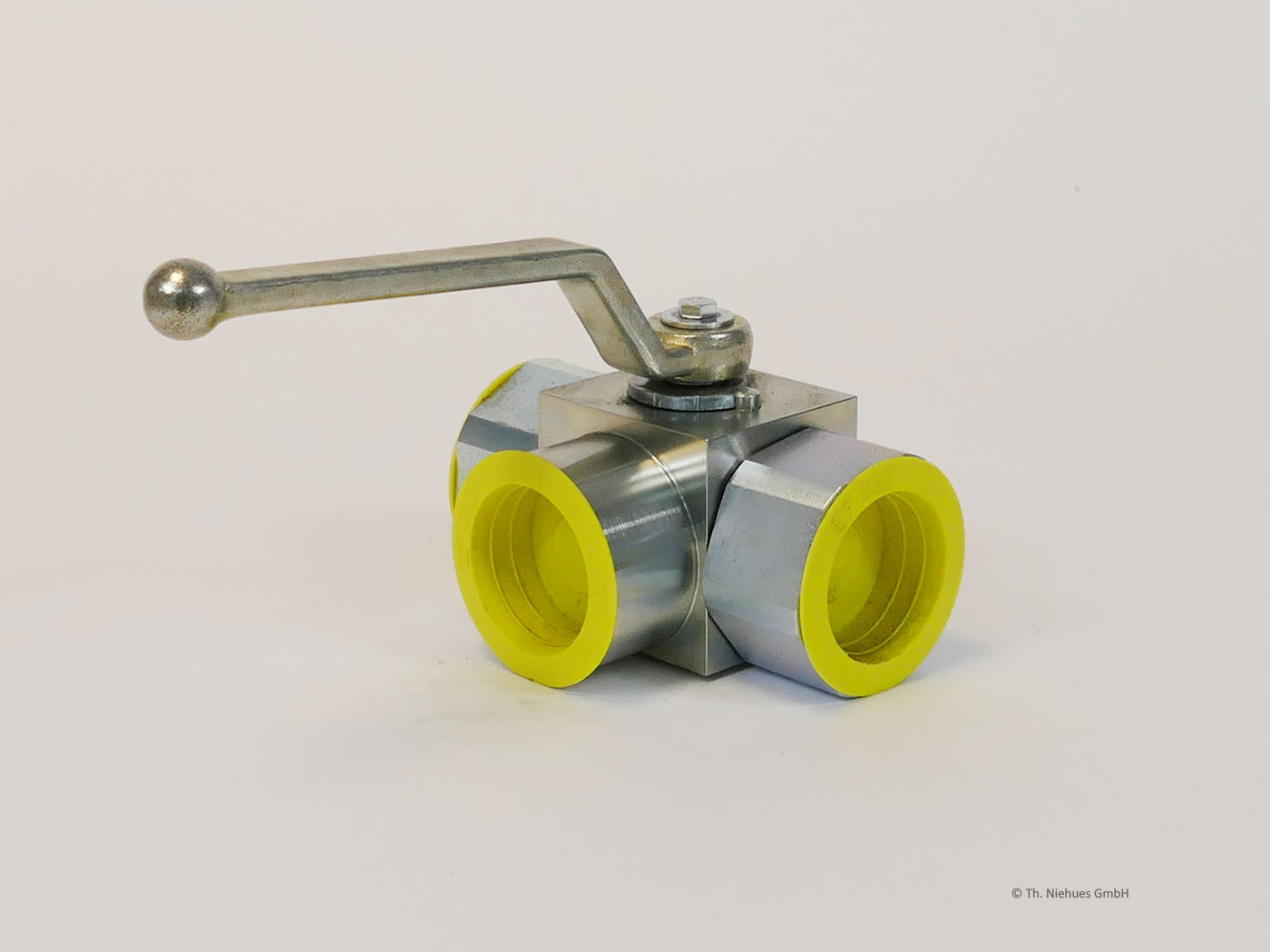

3155405 - Three-way ball valve

SKU: 15000042

Manufacturer: Hydac

Manufacturer SKU: 3155405

Unit: St.

Net weight (kg): 1,529

Customs tariff number: 84818081

Product data sheet

Request the live stock for this product

Bestand:

delivery_time: 26 Tage

Available
Critical stock, quantity must be checked.
The selected quantity is currently out of stock.
No availability information for this product

Even if the required quantity is not in stock, you can order it. The procurement takes place as quickly as possible directly from the manufacturer.

send_price_request

Technical information

Manufacturer information

Connection, mechanical:

22L - M30X2

Nominal diameter:

DN20

Ball bore:

L

Material:

galvanized steel, Chrome(VI)-free

tap wrench:

aluminium clamped handle, straight SW14

max. operating pressure:

315 bar

Seal:

EO2 sealing ring made of Viton

Seal:

NBR

Seal:

NBR (Nitrile)

Temperature range:

-10° up to +80°C

Special Offer:

Yes

availability:

no stock
