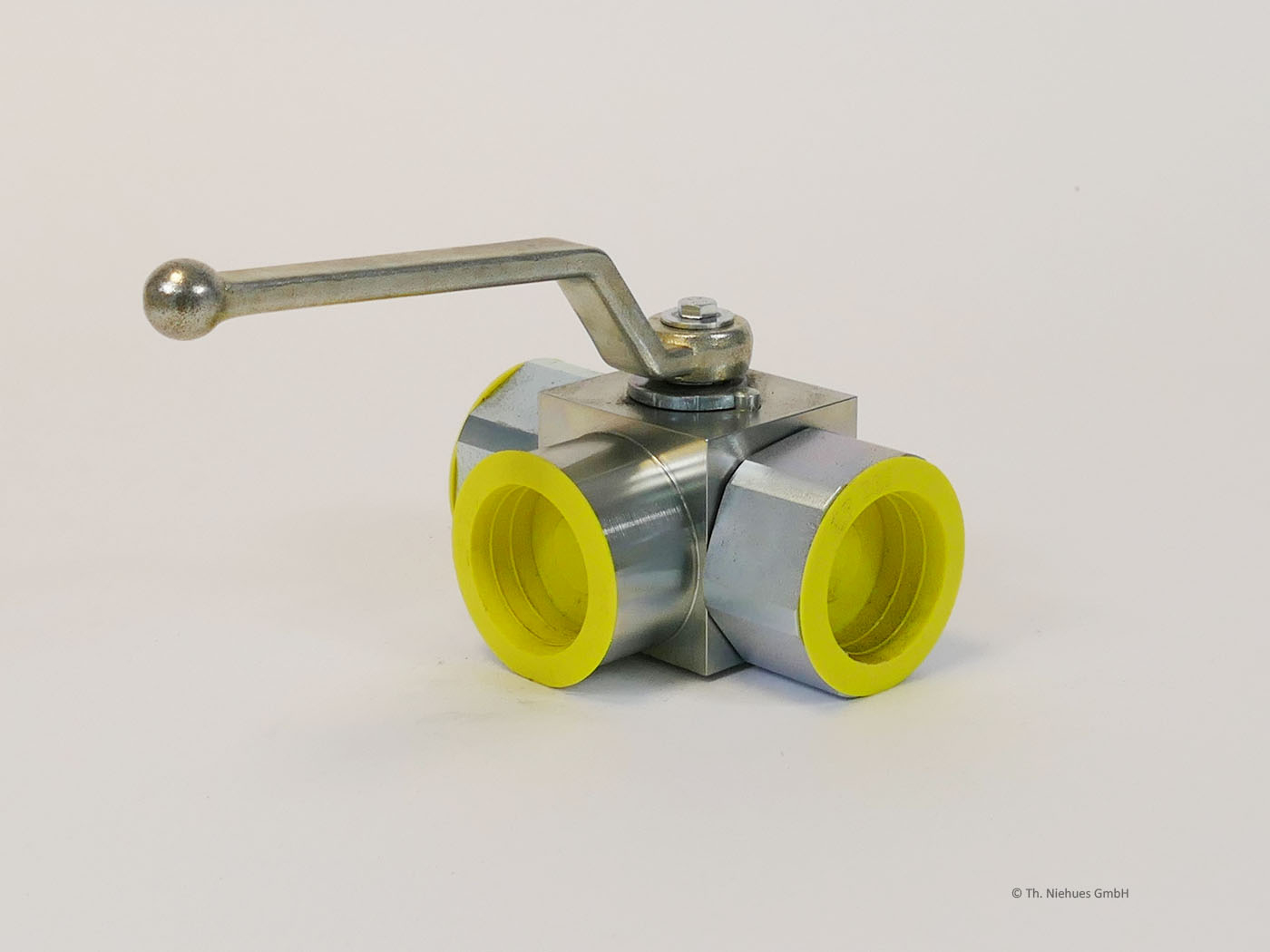

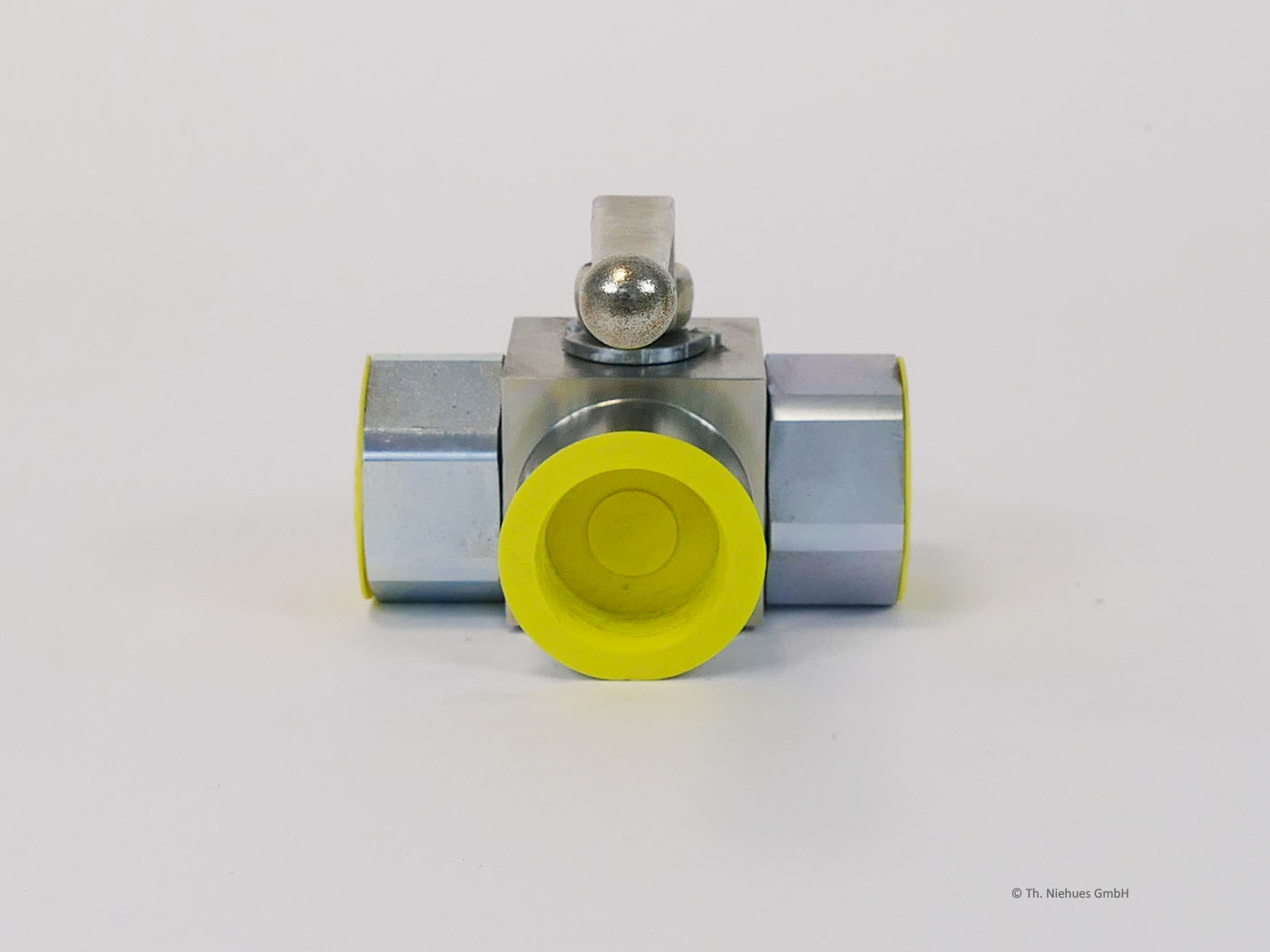

561580 - Three-way block ball valve

SKU: 15000111

Manufacturer: Hydac

Manufacturer SKU: 561580

Unit: St.

Net weight (kg): 0,00

Product data sheet

Request the live stock for this product

Bestand:

delivery_time: 26 Tage

Available
Critical stock, quantity must be checked.
The selected quantity is currently out of stock.
No availability information for this product

Even if the required quantity is not in stock, you can order it. The procurement takes place as quickly as possible directly from the manufacturer.

send_price_request

Description
Technical information

Description

Nennweite: DN40
Anschlussart: IG 1 1/2
Kugelbohrung: L
Betriebsdruck: 350 bar
Temperatur: -10° bis + 80°
Hahnschlüssel: Stahl - Steckhebel gekröpft SW17
Dichtung: FKM (Viton)

Manufacturer information

Connection, mechanical:

G1 1/2″ IT

Nominal diameter:

DN40

Ball bore:

L

Material:

galvanized steel, Chrome(VI)-free

tap wrench:

steel bolt-on handle, cranked SW17

max. operating pressure:

350 bar

Seal:

EO2 sealing ring made of NBR

Seal:

FKM (Viton)

Temperature range:

-10° up to +80°C

availability:

no stock
